The 512Hz version of the locator and receiver greatly improves functionality by precisely positioning and tracking the robot as it moves through the pipeline. With the ability to emit signals at a specific frequency, the 512Hz locator enables users to accurately locate and trace the robot's path. These signals are received and interpreted by the receiver, providing valuable information on the robot's position.
Product Name: Sewer Pipe Inspection Camera Robot Model: WR030 Control: WIFI Connection, Tablet Control Cable: 60M (Optional: 120m) Camera: Front and Rear Dual Cameras (Front: Horizontal 360° + Vertical 180° Rotation)Camera Height : 200mm to...
SKU: WR030
Category: Long Range Sewer Camera, Robot
Guaranteed safe checkout:
Orders ship within 5 to 10 business days.
Hoorey ! This item ships free to the US

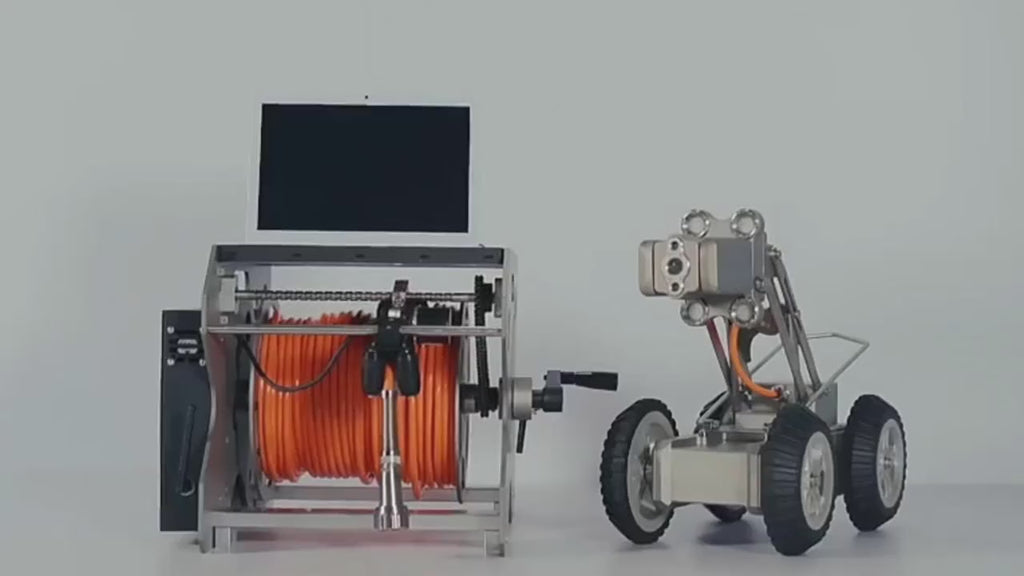

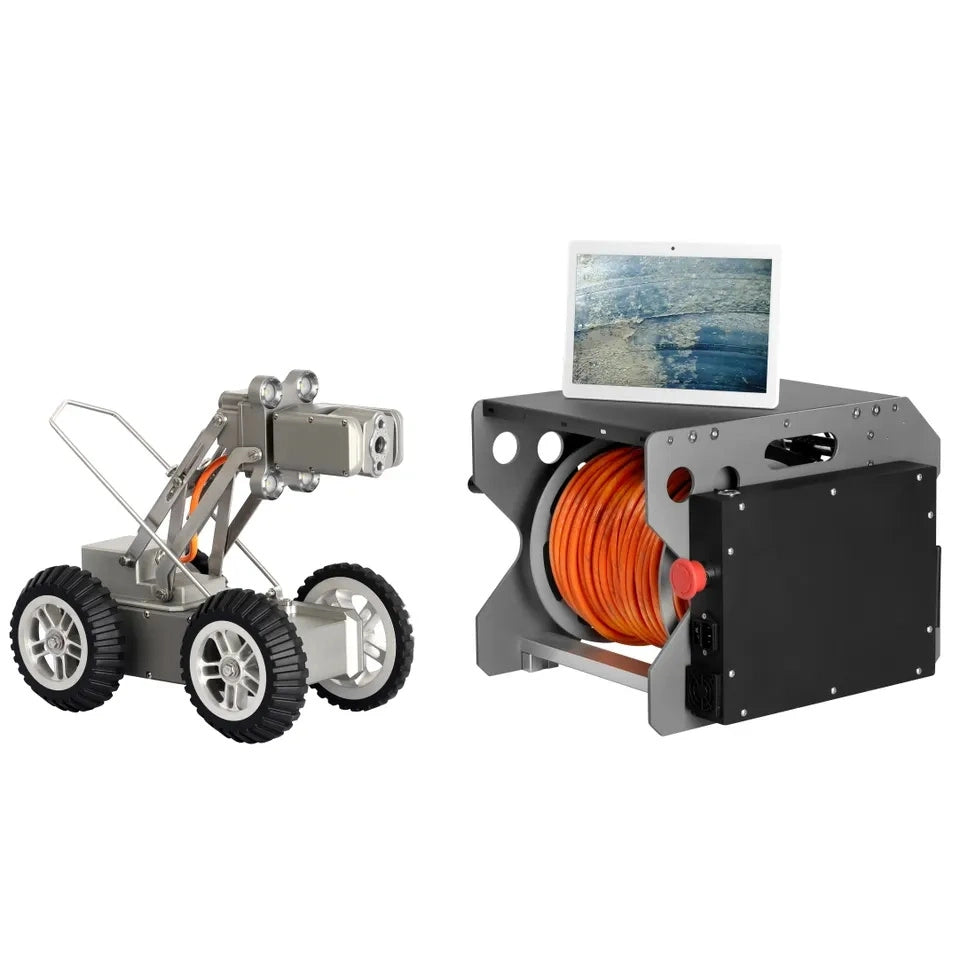

Product Name: Sewer Pipe Inspection Camera Robot
Model: WR030
Control: WIFI Connection, Tablet Control
Cable: 60M (Optional: 120m)
Camera: Front and Rear Dual Cameras (Front: Horizontal 360° + Vertical 180° Rotation)
Camera Height : 200mm to 370 mm
Resolution: Front Camera: 2MP HD, Rear Camera: 2MP HD
Light: 40W, Front Camera ( 6pcs LED Lights), Rear Camera(2pcs LED Lights)
Brightness Adjustable
Power: Four-Wheel Drive, Powerful (15-25m/min.); Low, Medium and High-Speed Adjustment Functions: Meter Counter, DVR
Size / Weight: Cable Frame: 400*440*300mm/15.8KG(60m Cable); Crawling Vehicle: 520*210*200mm/9.8 KG
| Material | High Strength Alloy Material |
| Motoring | Mode Four-wheel Motoring |
| Moving Mode | Four-wheel Crawling |
| Speed | 2-25 meters/min, Three adjustable speeds |
| Motor Power | 100W |
| Camera Pixel | 2 Megapixel |
| Lens Rotation Angle | Infinite 360-degree uniform rotation |
| Lens Flip Angle | 190 Degrees |
| The Lens Material | Alloy Steel |
| Light Power | 40W |
| Front Camera Lighting Source | 4 primary camera lights, 2 secondary camera lights |
| Backward Camera Light Source | 2 camera lights |
| Waterproof | IP68 |
| Size | 522.5mm*212mm*198.5mm / 20.5in*8.35in*7.8in |
| Weight | 9.8KG |

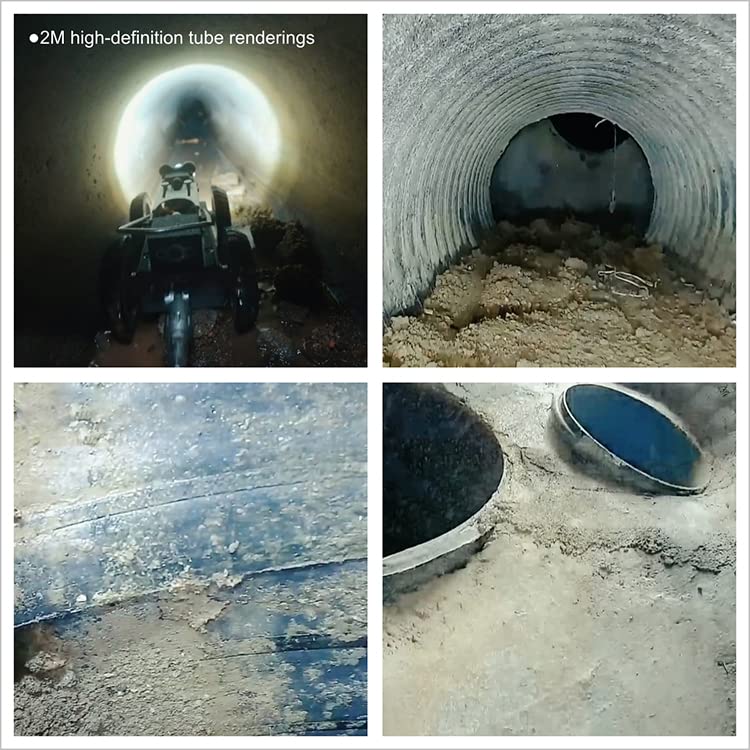

Professional-grade Low-Light Cameras with High-Definition Capabilities
This robot has front and rear 2-megapixel cameras that produce clear and detailed visuals in low-light conditions. Its front camera can rotate 360 degrees horizontally and adjust 90 degrees vertically for optimal viewing angles.

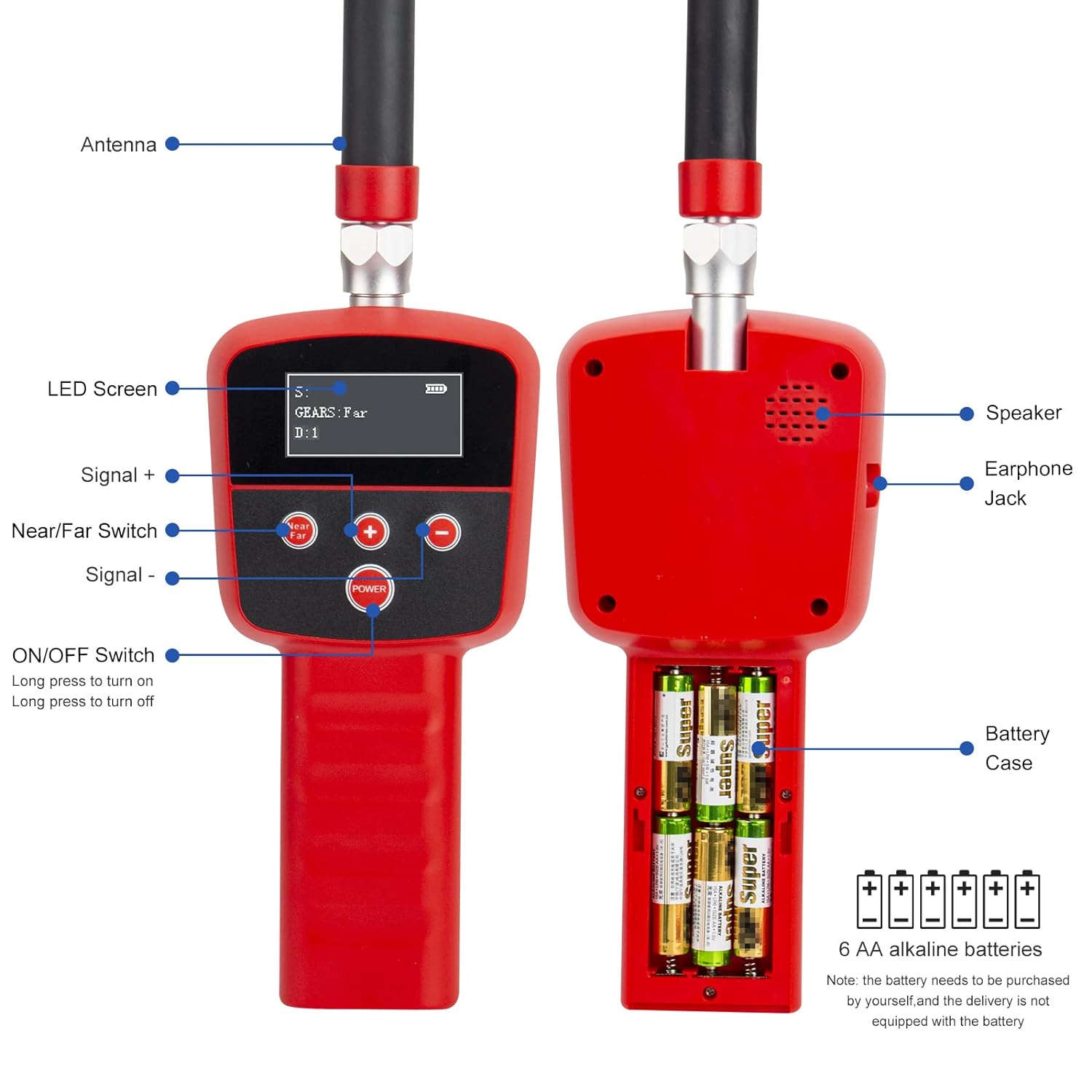

Support for 512Hz Transmitter Signal
This robot has a 512Hz signal and receiver for precise tracking in underground pipes. Detect and locate pipeline positions accurately.

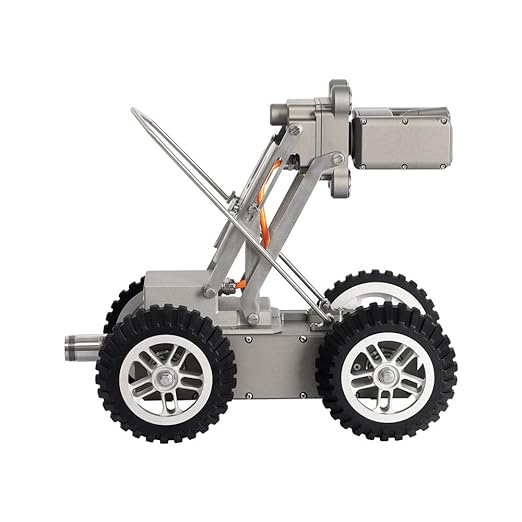

Motor-Driven Wheels, Non-Skid Tires
The Sewer Pipe Inspection Camera Robot has non-skid tires for stable navigation on wet and slippery surfaces. Easily adjust the driving speed among three levels - high, medium, and low - to match your specific inspection task requirements.

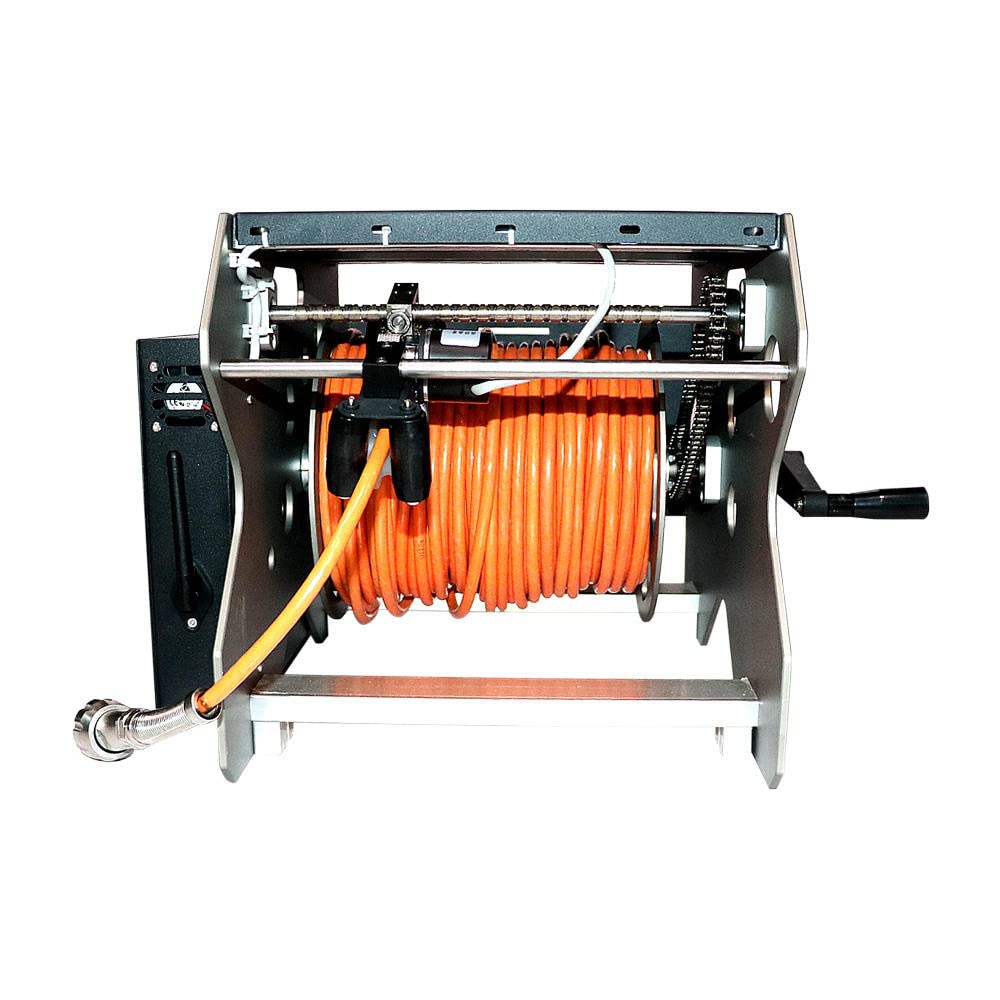

Simplified Wire Winding
This all-metal winch has an automatic wire winding function and a meter count function to track driving distance. It also has a durable cable for reliable performance in tough environments.
Capture Moments with a User-Friendly Interface
The robot includes a pre-installed software tablet for easy operation and navigation during inspections. It also has a DVR function for documenting and recording findings for future use.
The front camera can rotate 360 degrees horizontally and ±90 degrees vertically.
- The Sewer Pipe Inspection Camera Robot features 2-megapixel cameras at the front and rear, providing precise visuals of the pipeline's interior. With 360-degree rotation, the front camera offers a versatile view of the surrounding environment during inspections or explorations.
- The Sewer Pipe Inspection Camera Robot has a 360-degree rotation function on its front camera, allowing for comprehensive image and video capture from multiple angles. This advanced feature ensures thorough evaluation of pipeline conditions, detecting potential problems like cracks, blockages, and leaks. The flexible rotation also enables smooth navigation around corners and bends, ensuring a complete assessment of the pipeline's state.
- The high-resolution cameras deliver superior image quality, allowing for precise detection of any pipeline irregularities. This enables accurate assessment of the pipeline's condition and informed decision-making for repairs or maintenance.
- Utilizing both front and rear cameras, along with the front camera's 360-degree rotation, this sewer pipe inspection robot is equipped to thoroughly assess and ensure the efficient operation and safety of pipeline systems through image capture and video recording capabilities.
8 Powerful Lights (6 Front and 2 Rear)
The Lens can be Adjusted Vertically by ±90 Degrees.

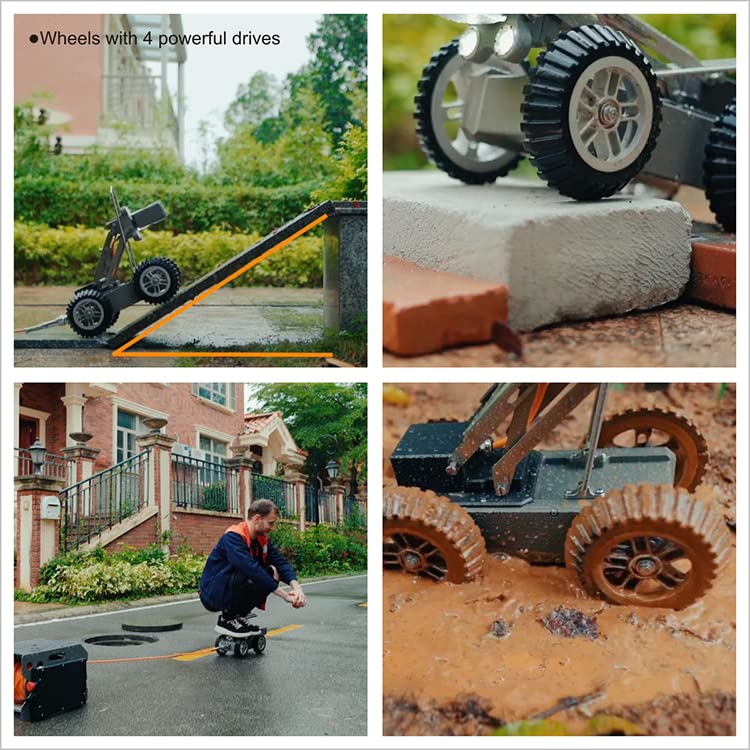

Powerful Four-wheel Drive
Capable of Withstanding Full-Body Washing

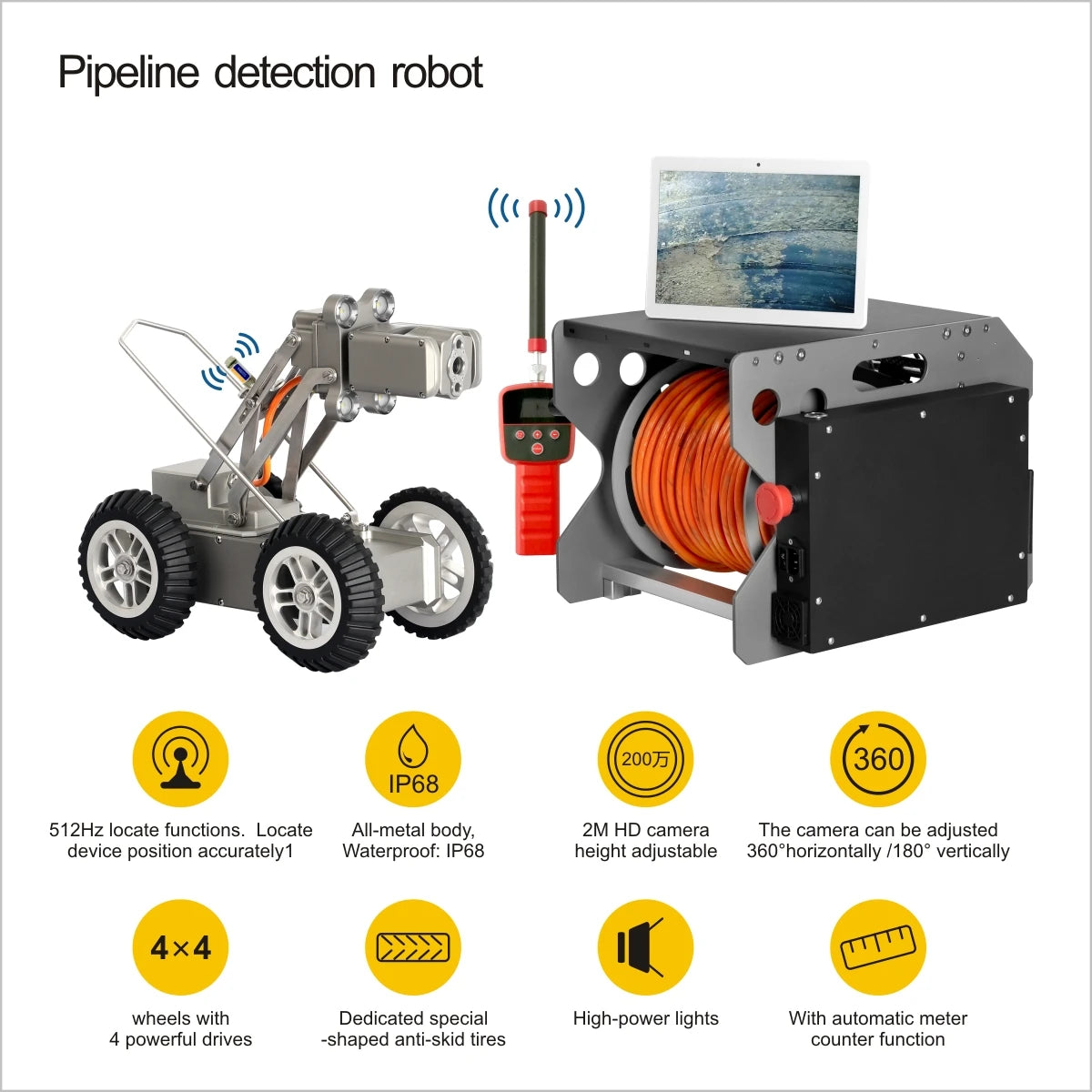

There are two versions of the pipeline robot available to meet different needs. One version has a 512Hz locator and receiver, while the other version does not. This design allows users to select the appropriate version to suit their specific requirements.
The 512Hz version of the locator and receiver greatly improves functionality by precisely positioning and tracking the robot as it moves through the pipeline. With the ability to emit signals at a specific frequency, the 512Hz locator enables users to accurately locate and trace the robot's path. These signals are received and interpreted by the receiver, providing valuable information on the robot's position.
The 512Hz version of the locator and receiver greatly improves functionality by precisely positioning and tracking the robot as it moves through the pipeline. With the ability to emit signals at a specific frequency, the 512Hz locator enables users to accurately locate and trace the robot's path. These signals are received and interpreted by the receiver, providing valuable information on the robot's position.

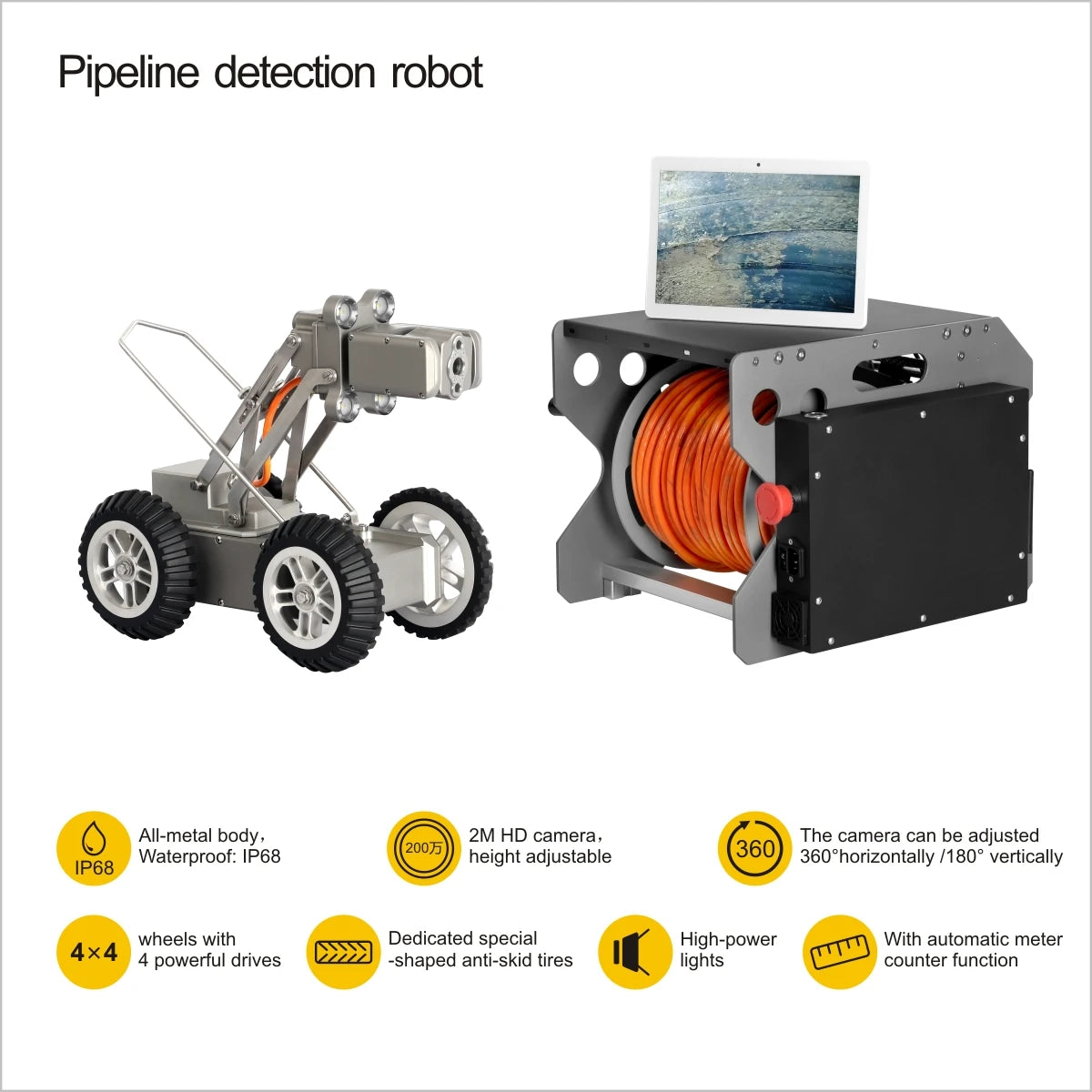

For users who do not need advanced positioning capabilities, the version without the 512Hz locator and receiver provides a streamlined option. This version is ideal for tasks where precise location tracking is not needed, or when users have other methods for determining the robot's position.
The pipeline robot offers two versions, providing users with flexibility and choice to select the configuration that suits their specific needs and budget. This allows for optimal customization and cost-efficiency.
The pipeline robot offers two versions, providing users with flexibility and choice to select the configuration that suits their specific needs and budget. This allows for optimal customization and cost-efficiency.
High Load-Bearing Capacity, able to Withstand Significant Pressure.
Easily Maneuver Over Obstacles
Fearless in Slippery Environments

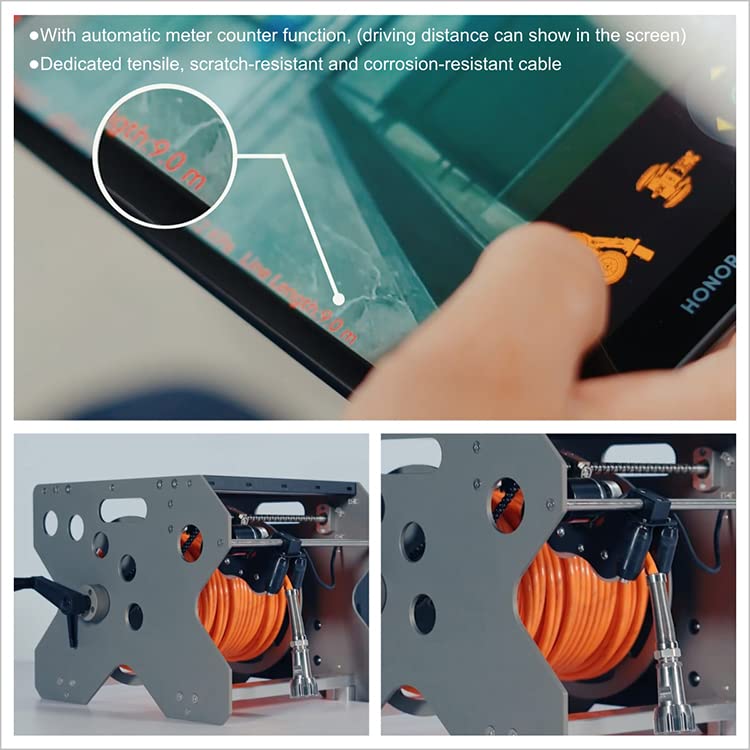

Meter Counter
The control terminal of the pipeline robot includes a tablet computer with a distance display feature. This allows users to easily track and measure the robot's distance within the pipeline in real-time. By accurately monitoring the robot's movement and position, operators can better control operations and gather important data for assessing progress during pipeline inspections or maintenance tasks.
The pipeline robot has a multitude of uses in different fields and industries.
This product is suitable for a variety of uses, showcasing its versatility.

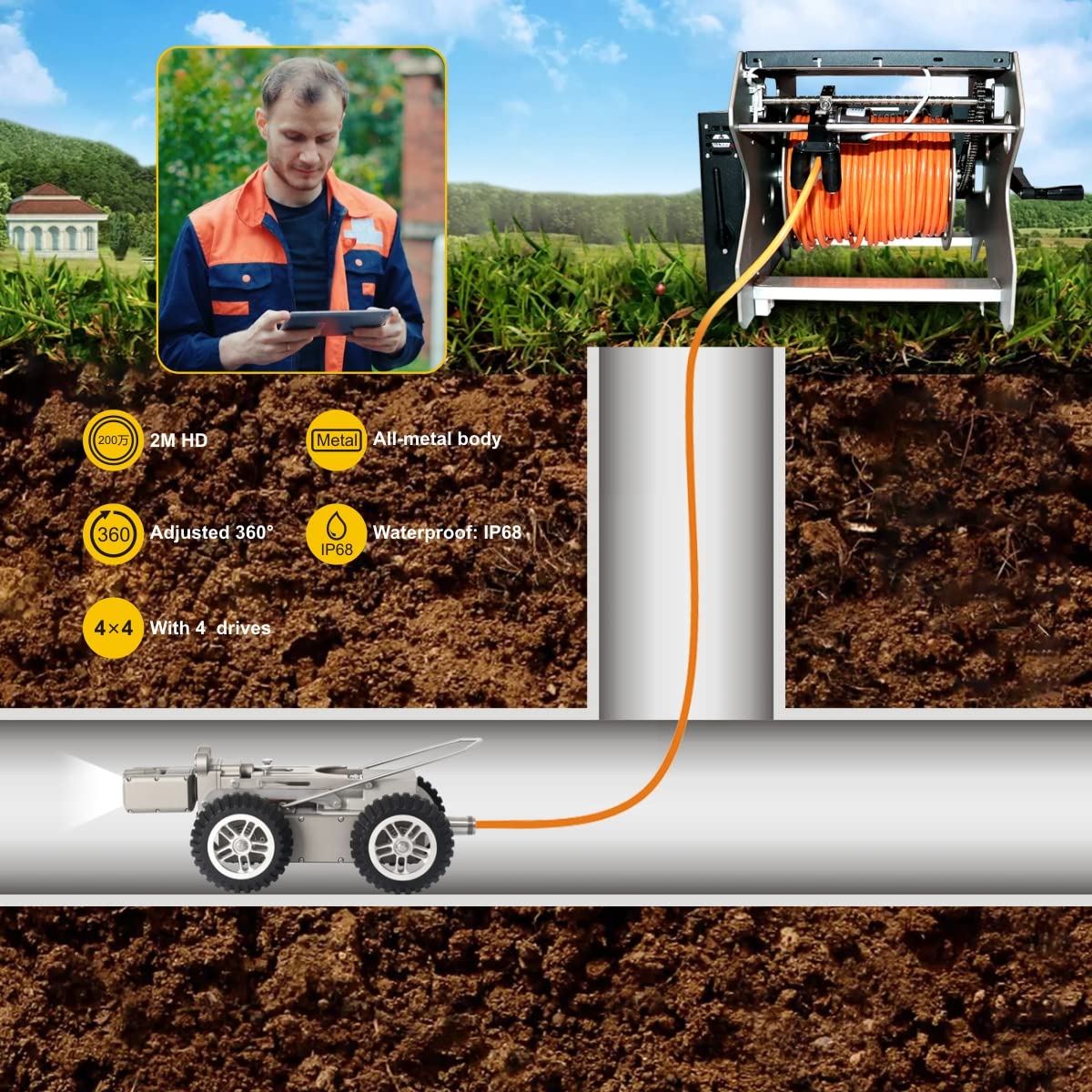

The advanced imaging technology of the sewer camera robot provides crystal-clear and high-resolution visuals, allowing for thorough inspections and monitoring. Its detailed and sharp images accurately capture the interior of pipelines, making it a useful tool for sewer inspections, drainage system maintenance, industrial pipeline monitoring, construction projects, plumbing inspections, and more.
Sewer Camera Robot

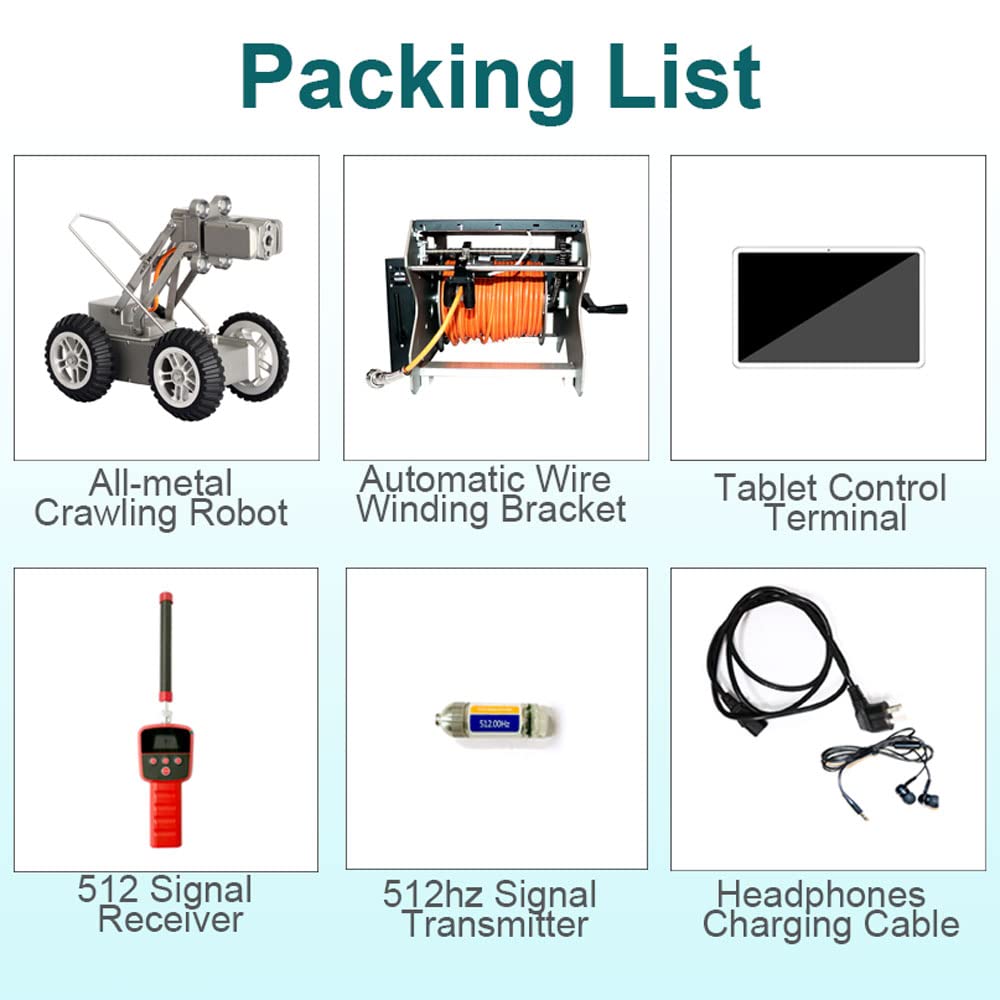

Packing list
- All-metal Crawling Robot
- Automatic Wire Winding Bracket
- Tablet Control Terminal
- Headphones and Charging Cable
- 512hz Signal Transmitter (Version with Locator)
- 512 Signal Receiver (Version with Locator)
- Model Number: WR030
- Cable length: 60-120 meters
- Control: remote control
- Light Power: 40W
- Power Supply: 110V-220V
Packing size
- 25*23*20in(64*58*50cm)
- Shipping Weight:84lb(38KG)
- Wire frame weight: 35lb(15.8KG)
- Maintenance: 1 Year
- Shipping Time: 7 days after receiving the order.
