Inscamera WP9600 Sewer Camera, 9-inch HD 1080P Snake Drain Waterproof Pipe Drain Inspection Camera for Home Wall Duct Drain Pipe Plumbing
SKU: WP9600A
Category: 17MM Sewer Camera, 23MM Sewer Camera, 360° Degree Rotating Sewer Camera, 45MM Dual Lens Camera, 5MM Diameter Cable Sewer Camera, 6.5MM Sewer Camera, 7MM Diameter Cable Sewer Camera, 9-inch Monitor Sewer Camera, Cable Frame Sewer Camera, Long Range Sewer Camera, Sewer Camera With DVR, Sewer Camera With HD 1080P, Sewer Camera With Keyboard, Sewer Camera With Wifi, Sewer Cameras, Short Range Sewer Camera

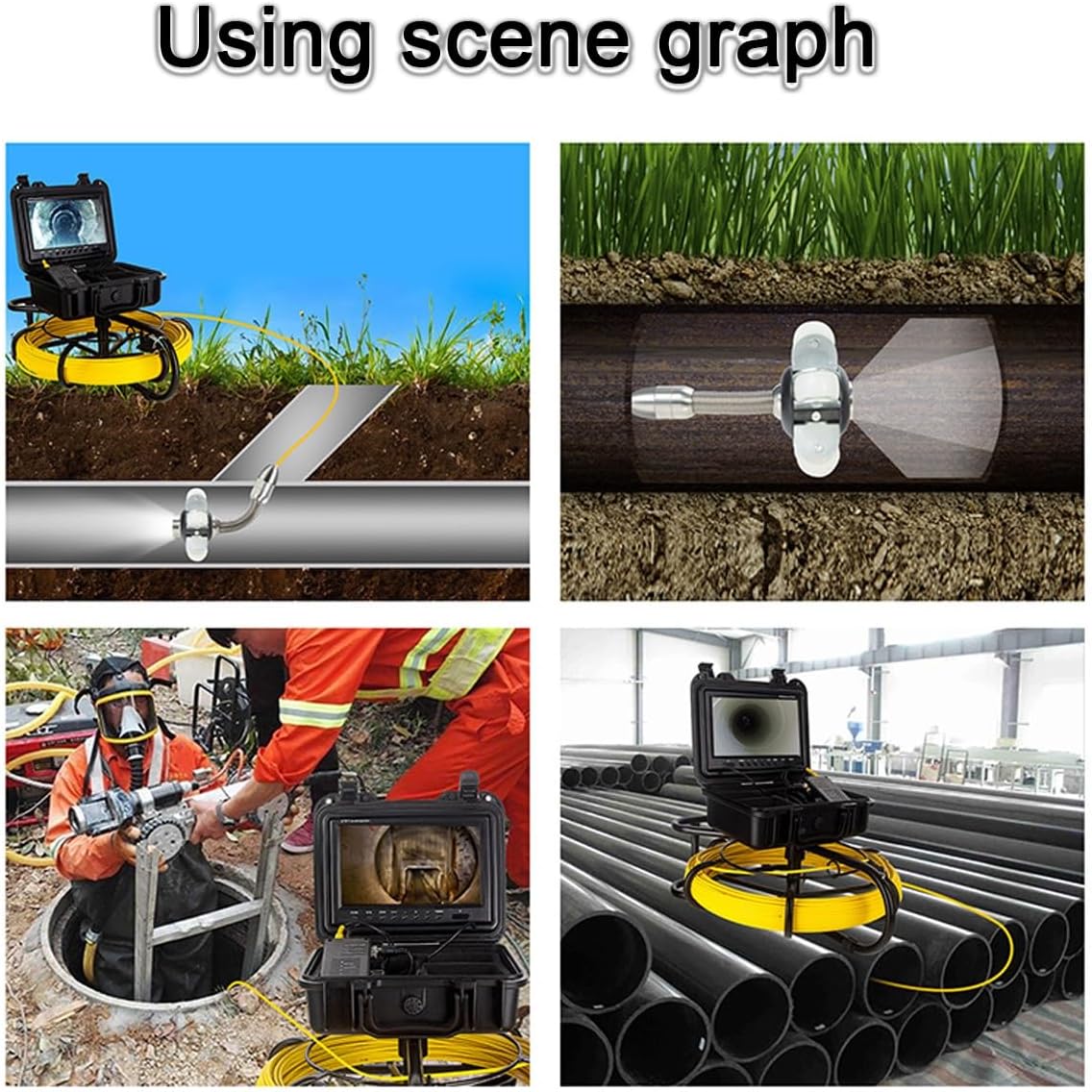

This 9-inch high-definition 1080P color display sewer camera is widely used in Water-supply pipe, Cable pipe, Air-conditioner pipe, PLUNBIN pipe, Buildings, Pipeline vacuum system, Sunken pipe. This waterproof sewer pipeline inspection camera features a 9-inch color LCD with a sun visor, designed specifically for outdoor inspections. With a rechargeable battery capable of providing 5 hours of continuous use, it can also be conveniently recharged from a power source or external battery. Made with professional-grade stainless steel, it is a reliable and durable tool for comprehensive drain pipe inspections.
Product Name: Pipe Inspection Camera System
Model NO.: WP9600

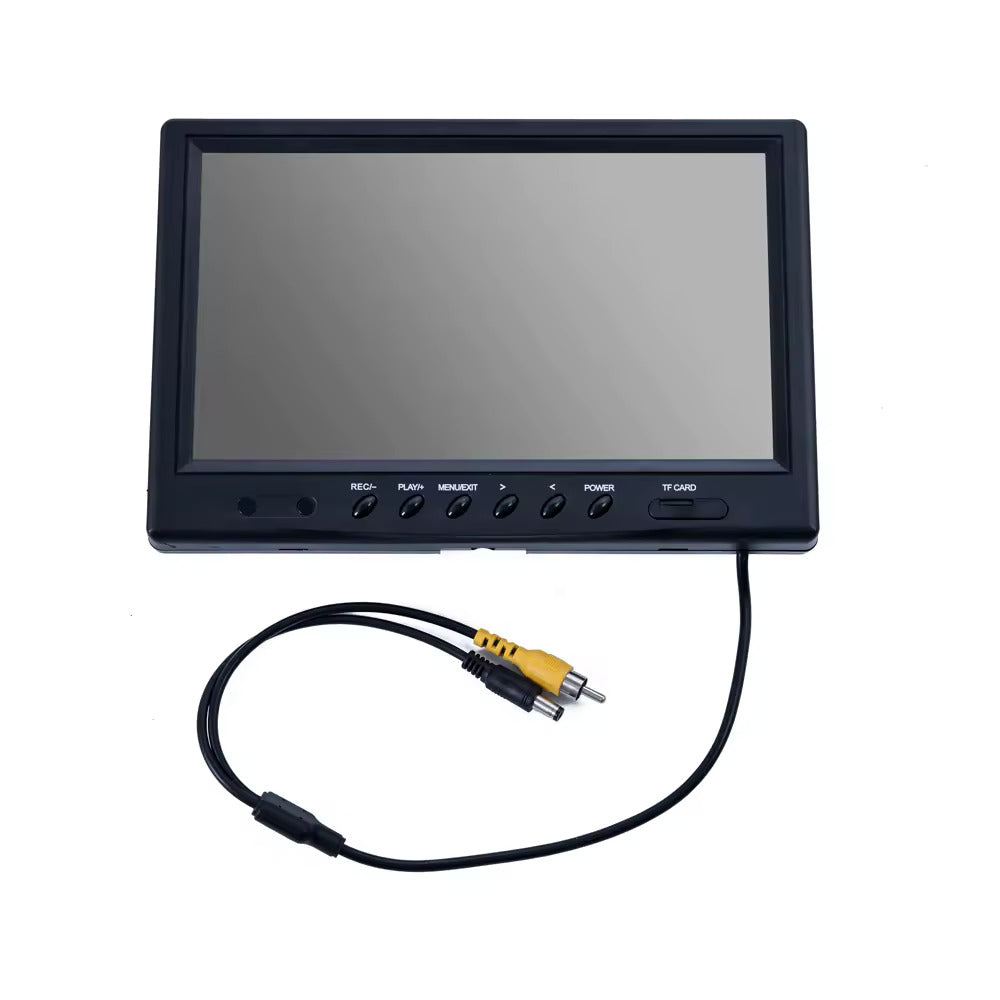

Screen: 9-inch
Monitor input voltage: 12V DC
Cable: 20m-200m (Dia.: 5mm), 20m-100m (Dia.: 7mm)
Camera: Can Pair with 6 Kinds of Camera Heads A B C D E F; 1200TVL
Camera light source: 12 high-brightness white LEDs (adjustable)
Camera pictures: color
Surveillance image: color

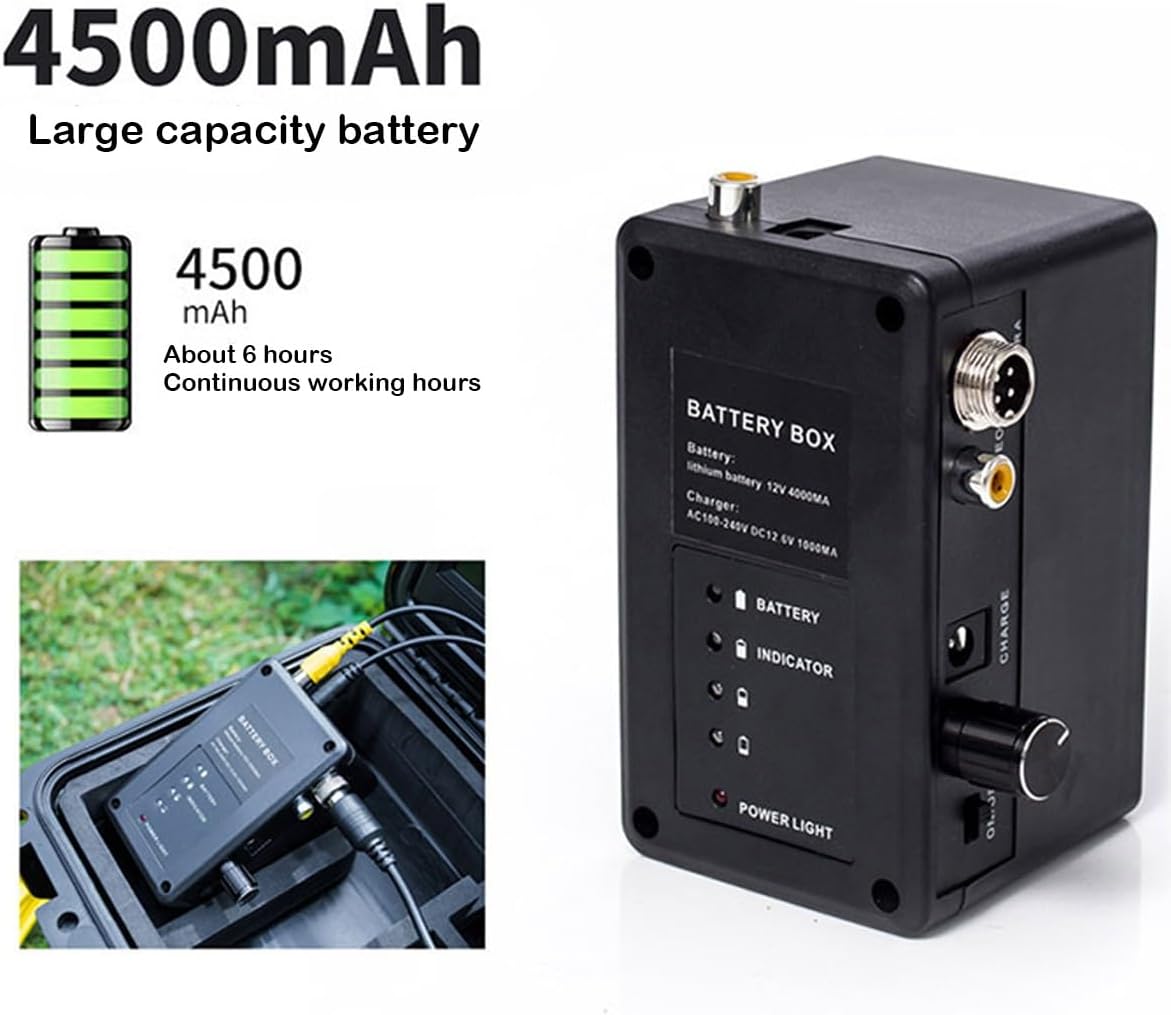

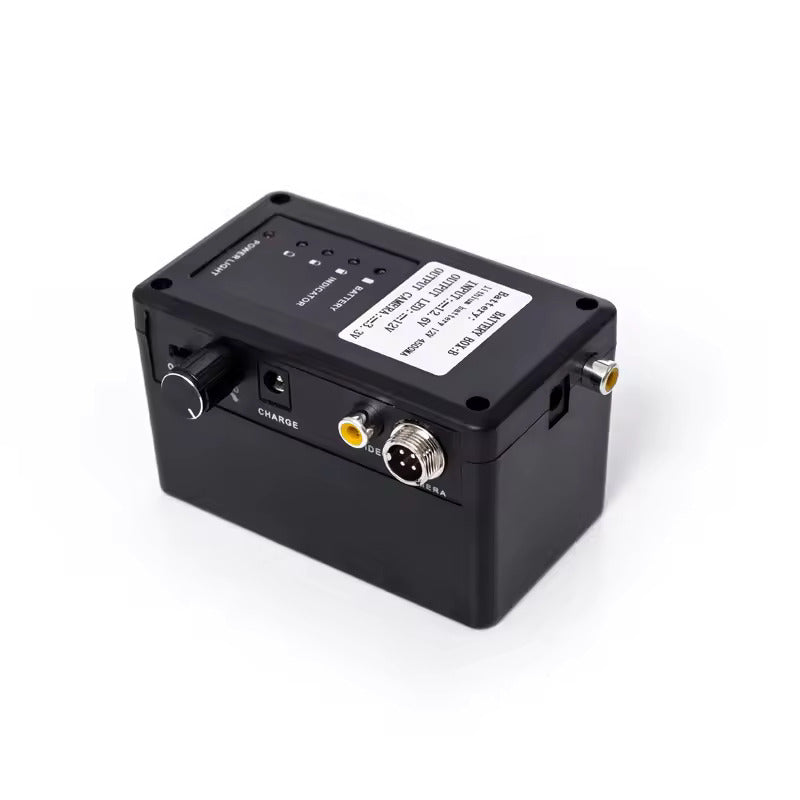

Battery: Lithium Battery 12V-4.5A (Support 4-6 Hours)
Charger: 100VAC-240VAC DC12.6V 1000MA
Light: Powerful LED Lights, Brightness Adjustable
Features: NO DVR(Optional: DVR, WIFI)
Cable Frame: Unique Structure, Easy to Release or Retract the Cable
Waterproof: IP68 (Max: 6m Water Pressure)
Detection depth/material: 20 meters, 50 meters, 100 meters/elastic high-strength fiber tube
Storage temperature: -30-80 degrees
Operating temperature: -20-60 degrees

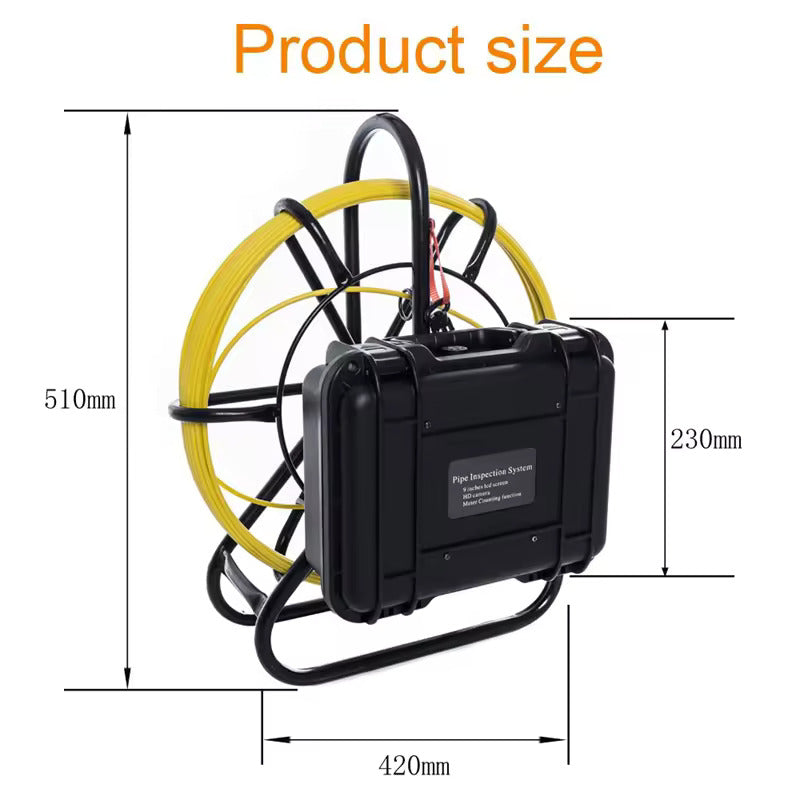

Size / Weight: 500*440*300mm/ 7KG (20m)
There are 4 sizes of cameras optional, kindly pls choose the correct one based on your requirements.

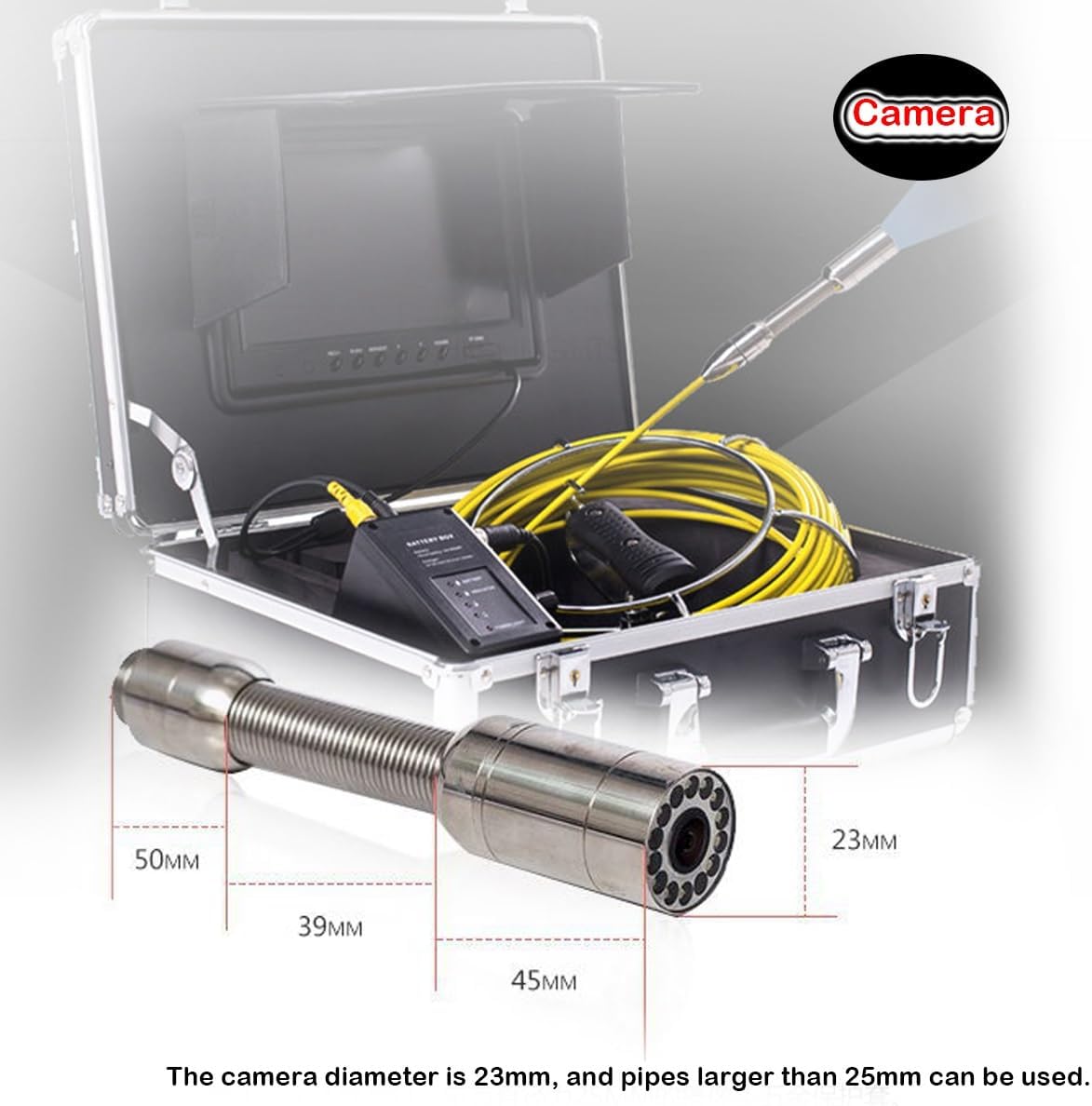

1. Item: 23mm camera head
- Camera diameter: 23MM
- With the tube diameter: >25MM
- Camera light source: 12 LED with high white light(adjustable)
- Camera working voltage: 5V
- Lights working voltage: 12V
- Water proof: IP68
- Camera material: stainless steel
- Camera size: 120MM* 23MM
- Camera protective cover parts material: plastic-steel
- Camera protective cover parts size 1: 29MM* 40MM
- Camera protective cover parts size 2: 40MM* 90MM
2. 17mm camera head
- Camera diameter: 17MM
- With the tube diameter: 18-100MM
- Camera light source: 6 LED with high while light(adjustable)
- Camera working voltage: 5V
- Lights working voltage: 12V
- Water proof: IP68
- Camera material: stainless steel
- Camera size: 100MM* 17MM
- Camera protective cover parts material: metal
- Camera protective cover parts size: 20MM* 25MM
3. 6.5mm camera head
- Camera diameter: 6.5MM
- With the tube diameter: 7-30MM
- Camera visual distance: 10-80MM (approximate)
- Camera light source: 6 LED with high while light(adjustable)
- Camera working voltage: 3.3V
- Lights working voltage: 3.3V
- Water proof: no
- Camera material: stainless steel
- Camera size: 45MM* 6.5MM
- Camera protective cover parts material: metal
- Camera protective cover parts size: 45MM* 15MM
4. 360° panning camera head
- Camera diameter: 145MM
- With the tube diameter: >150MM
- Camera light source: LED with high while light
- Camera working voltage: 12V
- Lights working voltage: 12V
- Water proof: IP68
- Camera size: 160MM* 94MM
- Camera protective cover parts size: 170MM* 145MM

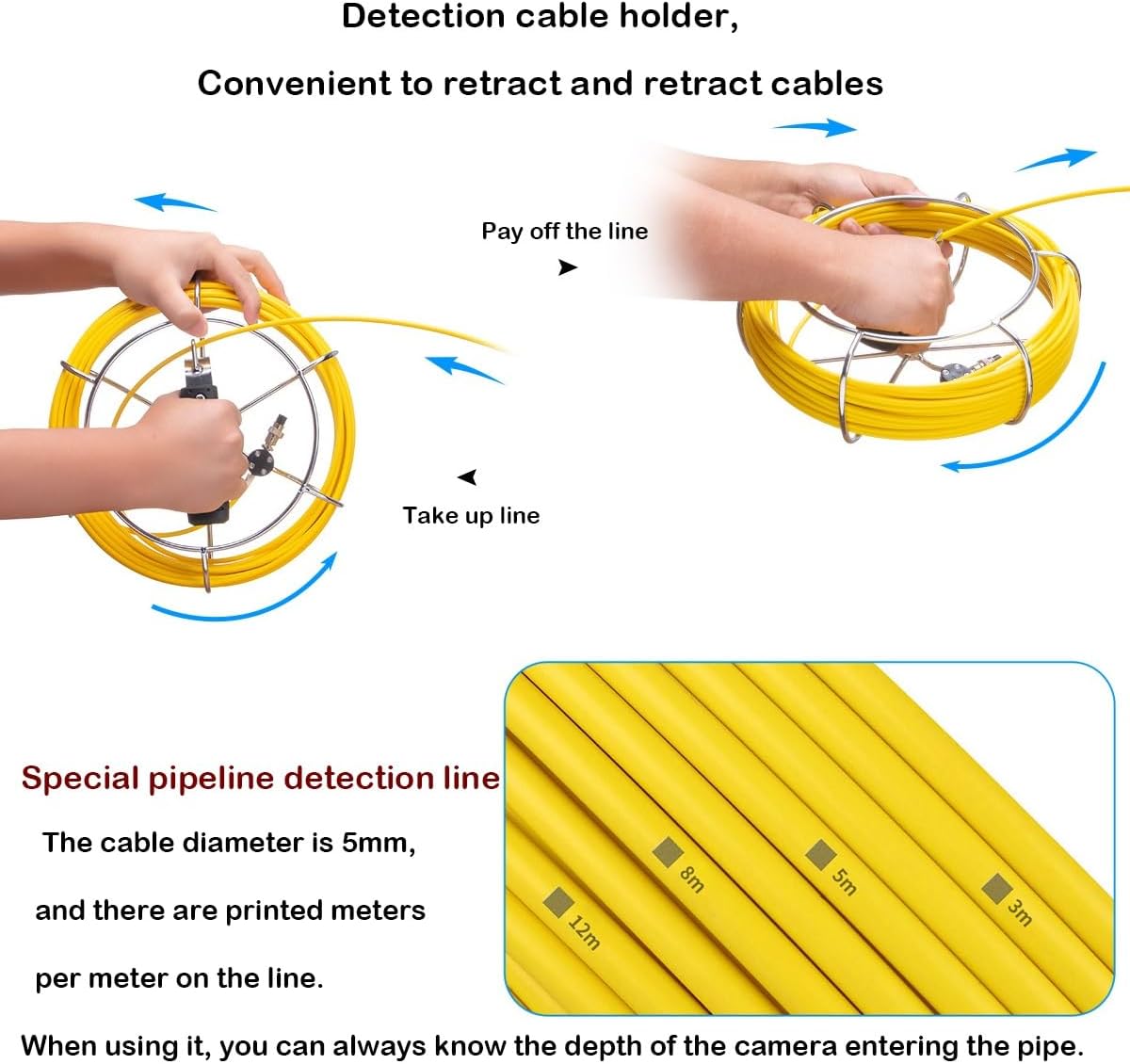

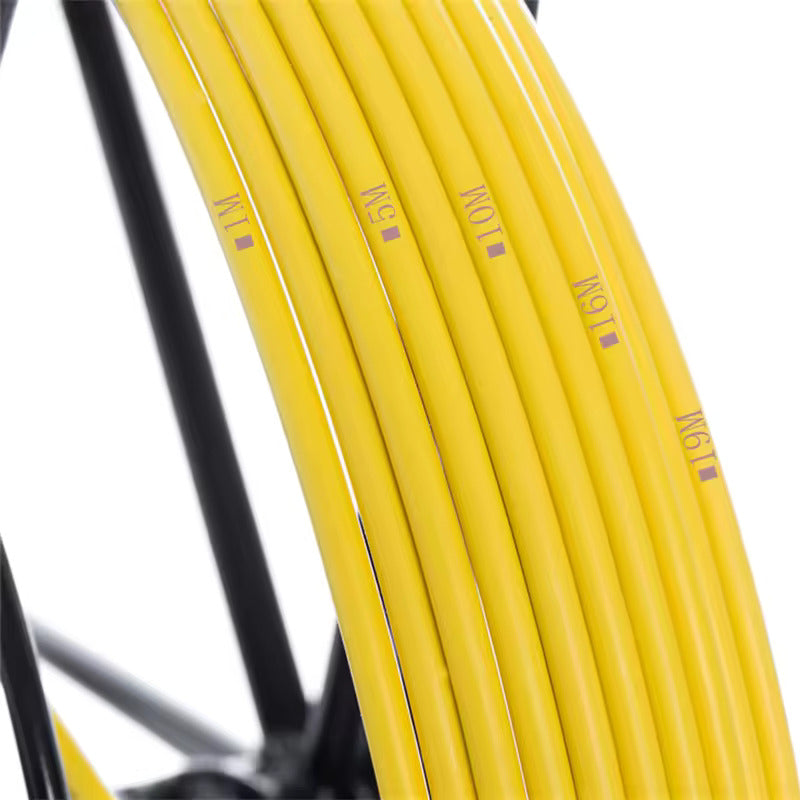

MARKED CABLE
The sewer inspection camera features a 100ft cable that is both long and durable. The cable includes instrument markings for accurate measurements and positioning during pipe inspections.
Cable Locking and Easy Storage
The sewer camera's cable reel features a locking mechanism for securing the cable at any length, preventing kickback and maintaining stability during inspections. Conveniently store the cable in the outer box for organized equipment management after use.
IP68 WATERPROOF & ADJUSTABLE LED LIGHT
With an IP68 waterproof rating, the sewer camera is fully safeguarded from water damage. This allows for submersion during inspections without any concerns.

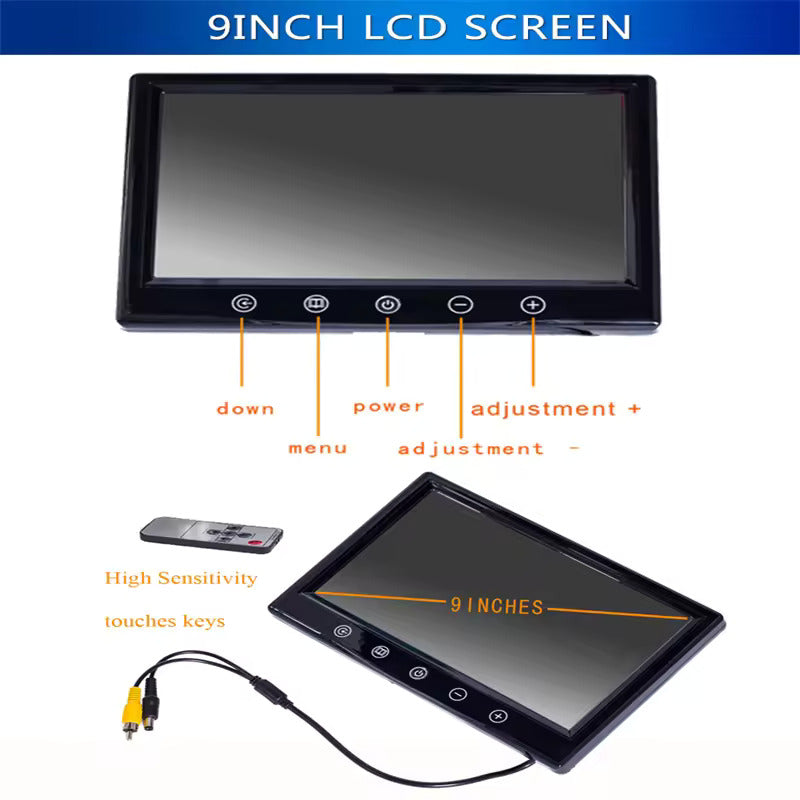

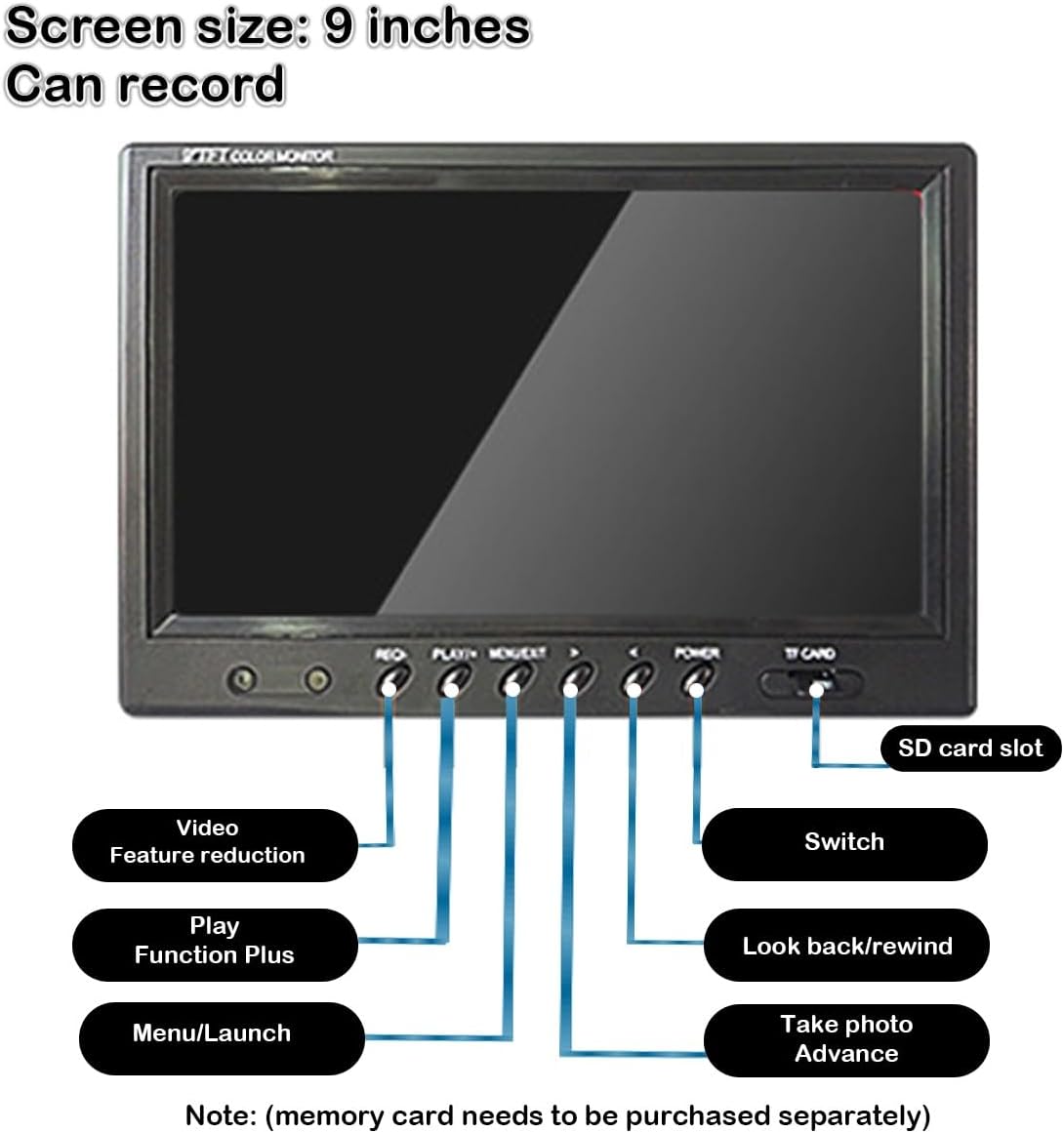

Enhanced Visibility and Easy Diagnosis
The snake drain waterproof pipe drain inspection camera boasts a 7-inch/9-inch high-definition display, allowing for unparalleled clarity. Its large screen enables easy observation and diagnosis of pipe conditions, saving valuable time and ensuring precise assessments.
